Contracted Development
NICHIDAI’s Contracted Development Service
NICHIDAI’s net-shape technology contributes to the development of a wide variety of precision forgings. NICHIDAI supports its customers’ technological development related to a shift to precision forging by providing contracted development services that use its own press for research and development.

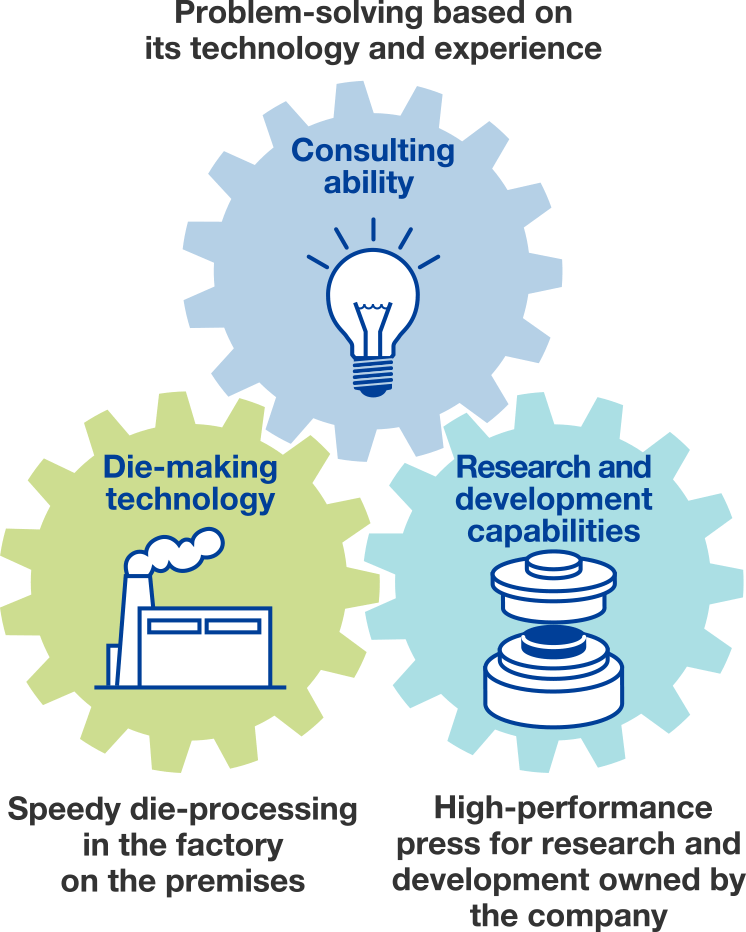

Advantages of NICHIDAI’s Contracted Development Services

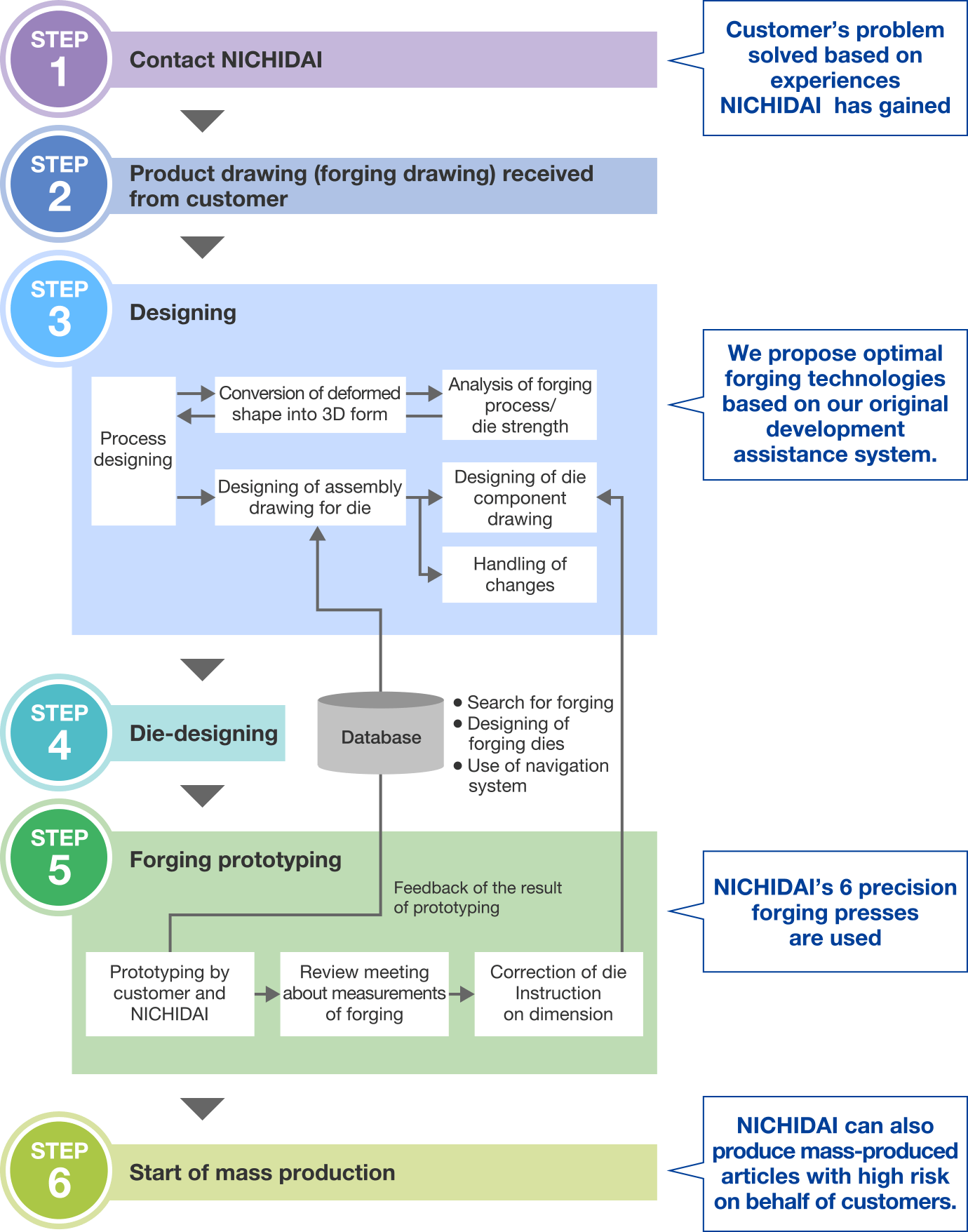

Steps of contracted development

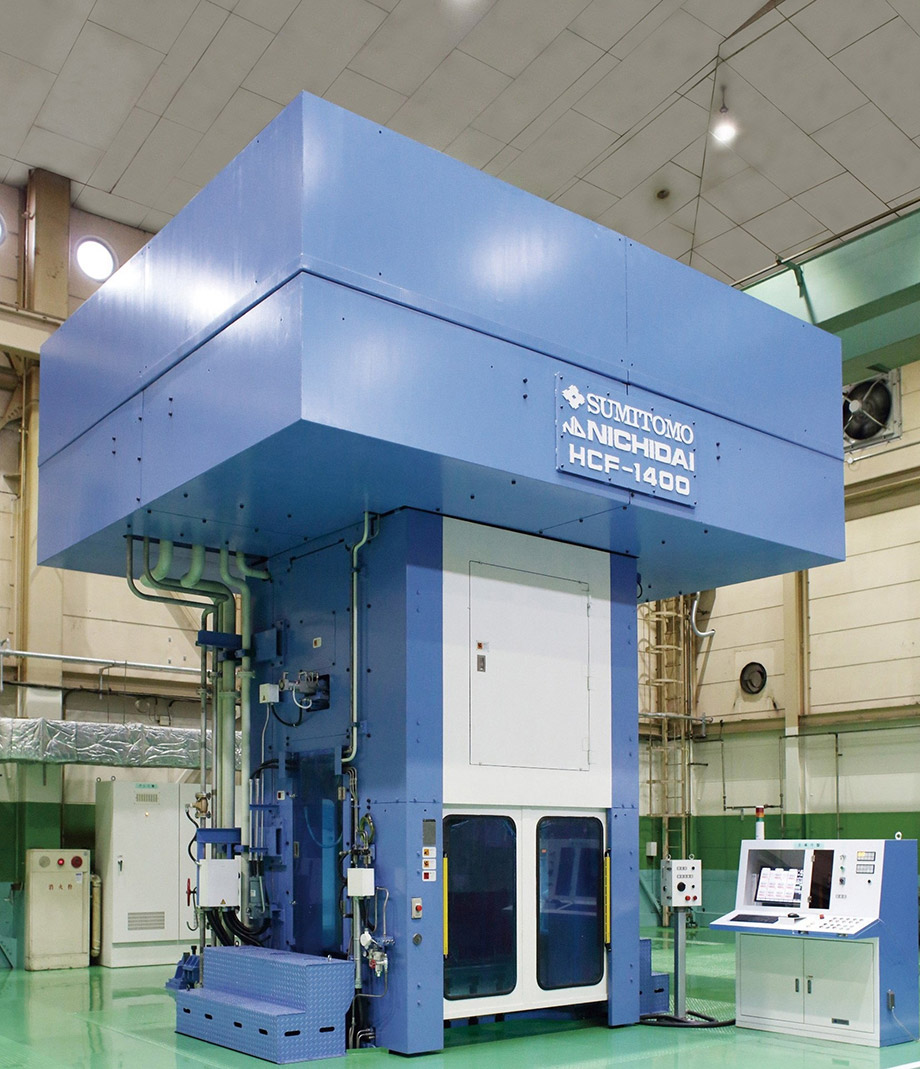

Press for research and development “NFD-1000”
“NFD” is the combined initials of “NICHIDAI ”, “Forging / Future”, and “Dream” which indicates that “NICHIDAI’s forging technology supports the future”.
Advantages
- High-precision: Precision of position and load improved by the pump directly connected to the servomotor. Treatment of unbalanced load using trichotomy independent slide.
- Flexibility: System addressing a wide range of pressure controls, position controls, and forming speeds. Support for the development of innovative forging methods.
- Streamlining: Realization of more efficient prototyping with three processes. Support for the launch of mass production by data collection in the development stage.
Specifications
| NFD-1000 (NICHIDAI’s original hydraulic double-acting press) | |||||
|---|---|---|---|---|---|
| Forming axis | Specifications | 1 processes |
2 processes |
3 processes |
|
| Main | Pressurizing capacity（kN） | 2,000 | 10,000 | 2,000 | |
| Stroke（mm） | 500 | 500 | 500 | ||
| Speed (mm/s) |
Low pressure |
1～170 | 1～100 | 1～170 | |
| Middle Pressure |
1～50 | ||||
| High pressure |
1～30 | ||||
| Inner | Pressurizing capacity（kN） | - | 4,000 | - | |
| Stroke（mm） | - | 250 | - | ||
| Speed（mm/s） | - | 1～80 | - | ||
| Bed | Pressurizing capacity（kN） | - | 4,000 | - | |
| Stroke（mm） | - | 250 | - | ||
| Speed（mm/s） | - | 1～80 | - | ||
| SKO | Pressurizing capacity（kN） | 100 | 200 | 100 | |
| Stroke（mm） | 100 | 250 | 100 | ||
| Speed（mm/s） | 1～100 | 1～100 | 1～100 | ||
| BKO | Pressurizing capacity（kN） | 225 | 1,000 | 225 | |
| Stroke（mm） | 200 | 250 | 200 | ||
| Speed（mm/s） | 1～100 | 1～100 | 1～100 | ||

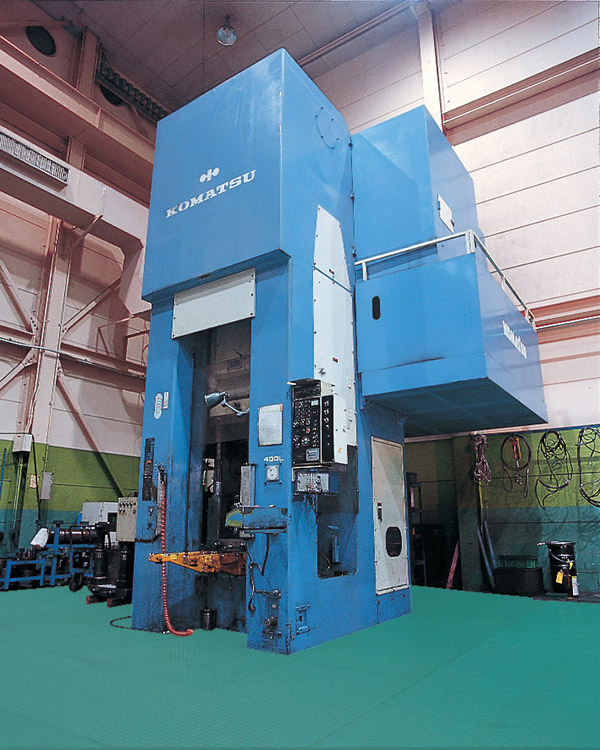

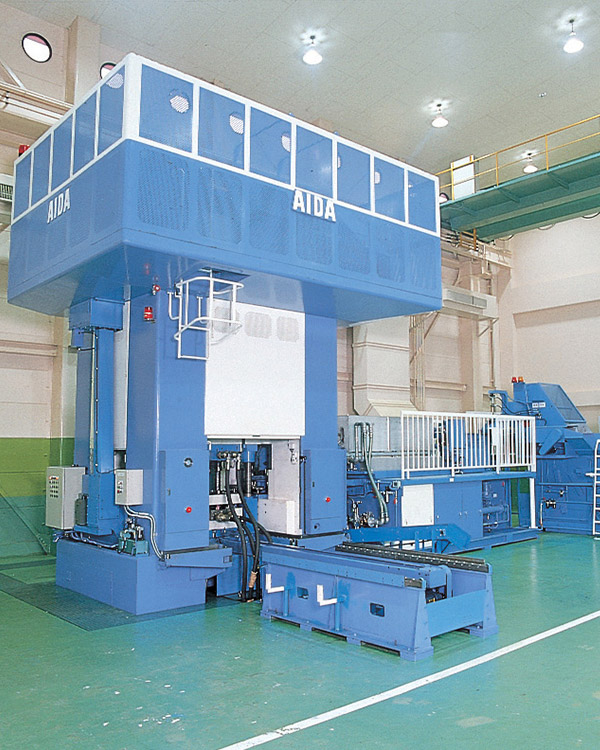

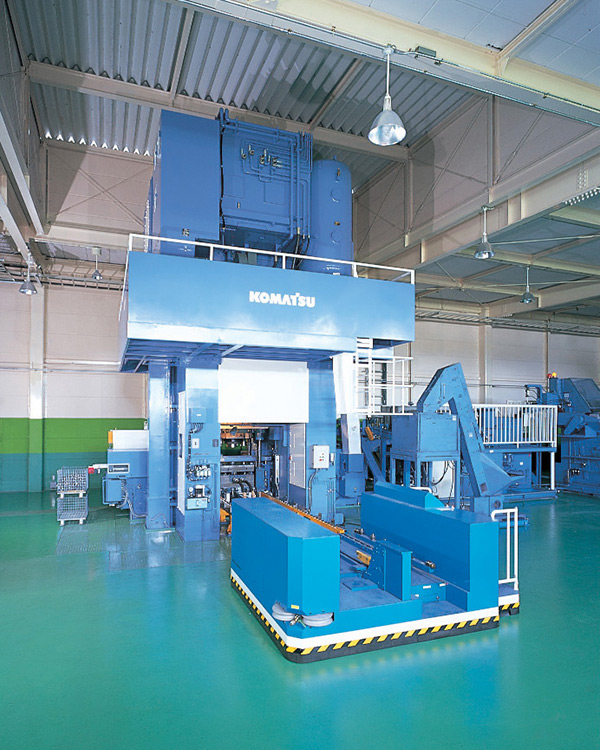

Other presses
L1C-400L
L2C-1250L
FMX-1000
Refer to the catalog for details.
Download Catalog:Contract Development Work / Product Introduction(828KB)
